Metal Stamping

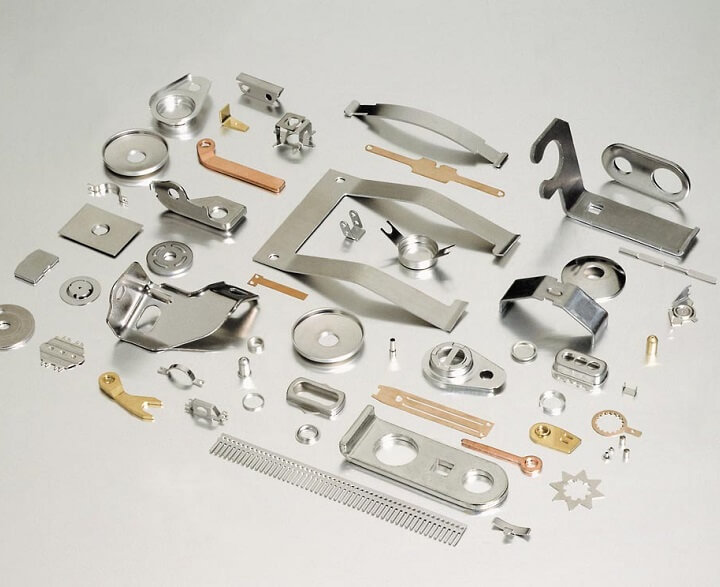

Metal stamping is a high‑precision manufacturing process where flat sheet metal is pressed into a die to form complex parts with tight tolerances, making it ideal for mass production of automotive, aerospace, and consumer components. It combines speed, repeatability, and cost‑effectiveness, but requires skilled tooling design and careful process control.

🔧 What Is Metal Stamping?

• Sheet metal stamping: A fabrication process that shapes flat metal sheets or coils using a press and die.

• Die structure: Two halves (top and bottom) with the reverse imprint of the desired part.

• Press types: Mechanical, hydraulic, and servo presses, each offering different speed, force, and flexibility.

⚙️ Step‑by‑Step Workflow

1. Design & Engineering CAD models define dimensions, holes, bends, and tolerances.

2. Tooling fabrication Dies (progressive, compound, transfer) are built to match part requirements.

3. Material preparation Sheets or coils are selected based on strength, ductility, corrosion resistance.

4. Blanking Cutting raw sheets into blanks if not coil-fed.

5. Forming operations Includes punching, bending, drawing, coining, embossing.

6. Trimming & piercing Removes excess material and adds holes.

7. Surface finishing Cleaning, deburring, plating, or coating.

8. Quality inspection Dimensional and functional checks.

9. Packaging & delivery Parts are labeled and shipped safely.

🛠️ Common Operations

• Blanking: Cutting flat shapes.

• Bending: Creating angles.

• Drawing: Stretching sheet into 3D shapes.

• Coining: High‑pressure imprinting for fine details.

• Flanging: Bending edges for strength.

✅ Advantages

• High repeatability & accuracy for mass production.

• Low material waste compared to machining.

• Cost‑effective for large volumes.

⚠️ Challenges

• High tooling costs upfront.

• Skilled labor required for die design.

• Risk of defects like cracks or wrinkles if poorly controlled.
